Servo motors

---

The MXL range of Low Inertia High Speed Servo Motors for the DX4 Servo Drive 50W - 1kW range.

The MXL family of servo motors include solutions with absolute or incremental encoders, are suitable for application speeds up to 6000 rpm, include variants with an integrated brake.

Low inertia allows very fast response times and these motors develop a very high torque despite their small size. In combination with our servo drives, they are ideal for applications with high dynamic responses and fast and precise positioning.

Our servo drive systems can be used in a wide range of applications thanks to their high performance, available power range and compact dimensions.

The MXM range of Medium Inertia Medium Speed Servo Motors for the DX4 Servo Drive 1kW - 3kW range.

The MXM family of servo motors include solutions with absolute or incremental encoders, are suitable for application speeds up to 3000 rpm, include variants with an integrated brake.

Medium inertia allows fast response times and these motors develop a very high torque despite their small size. In combination with our servo drives, they are ideal for applications with high dynamic responses and fast and precise positioning.

Our servo drive systems can be used in a wide range of applications thanks to their high performance, available power range and compact dimensions.

• 0.89 to 77.2 Nm continuous torque
• Five (5) frames sizes, 72 to 190 mm
• Resolver, optical and inductive EnDat encoder, and HIPERFACE DSL feedback options
• Windings to suit 230 and 460 V operation
• Speeds to 6000 RPM
• Protection to IP66
• Optional holding brake
• Water or forced air cooling
• Available mounted to any of Stober's ServoFit® Gearheads
• Compatible with Rockwell and other manufacturer's drives

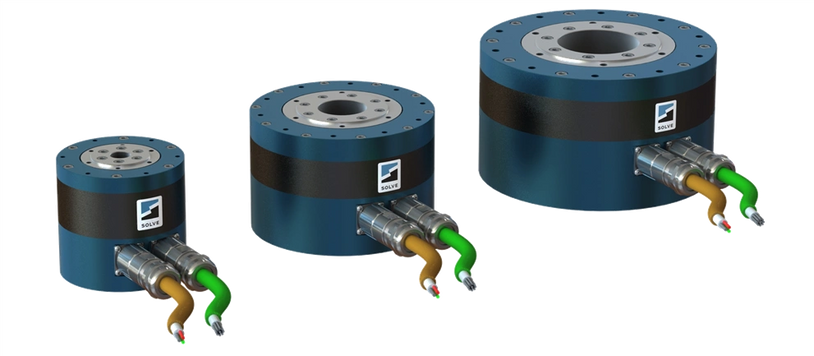

• 1.9 to 29 Nm continuous torque
• Three (3) frames sizes, 98 to 145 mm
• Hollow bore diameters 28 to 45 mm
• Inductive EnDat absolute feedback
• Windings to suit 230 and 460 V operation
• Speeds to 3000 RPM
• Direct drive or optional gearing (3, 9 or 27:1)
• Protection to IP65
• Water or forced air cooling
• Compatible with Rockwell and other manufacturer's drives

• Forces up to 5,876 lbs
• Two (2) frame sizes, 115 and 145 mm
• Ballscrew diameter to 32 mm
• EnDat absolute encoder feedback
• Windings to suit 230 and 460V operation
• Feed rate to 1.6 m/s
• Optional holding brake
• Compatible with Rockwell and other manufacturer's drives
